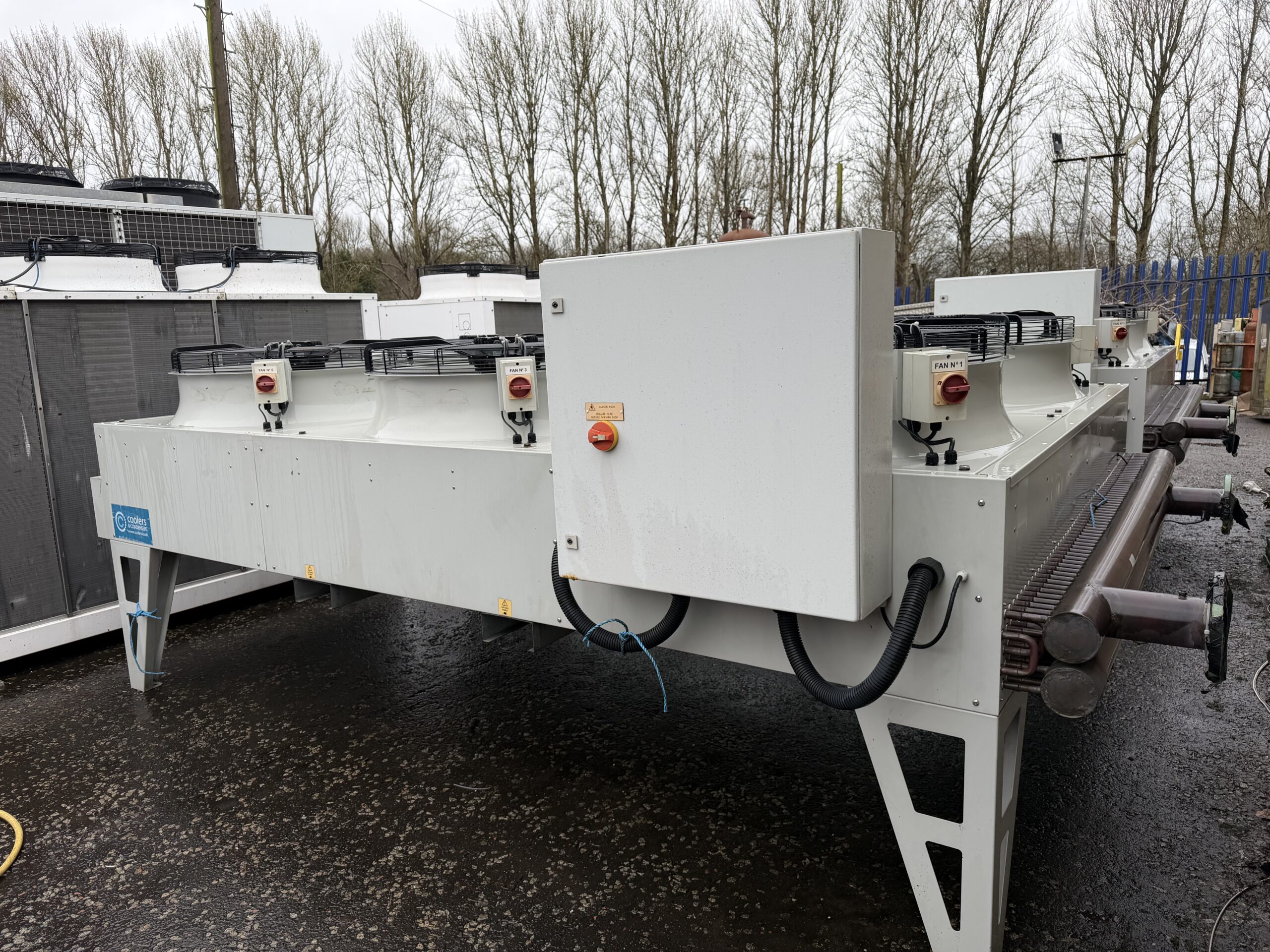

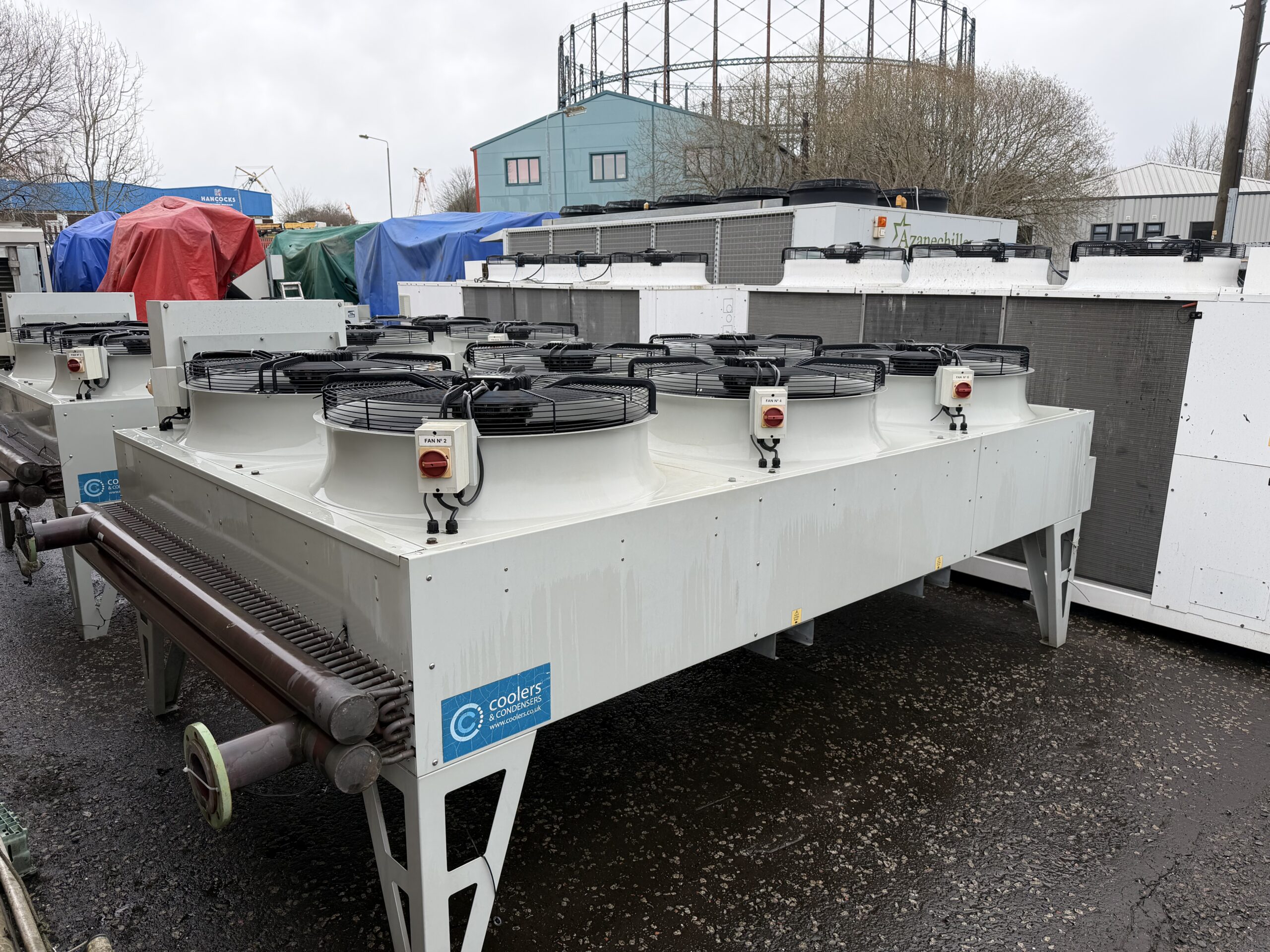

This DFHC1.2-235AL-EC91.X3.1195 is an industrial dry air cooler built for fluid cooling using 30% ethylene glycol. It delivers a cooling capacity of 394.8kW. At design conditions of 40°C fluid inlet, 35.9°C outlet and 28°C ambient air, it handles a fluid flow rate of 25.1 L/s at a 77.48 kPa pressure drop, with an airflow rate of 36.06 m³/s.

The unit suits process cooling, chiller heat rejection and general HVAC fluid-cooling work.

Heat exchanger and build

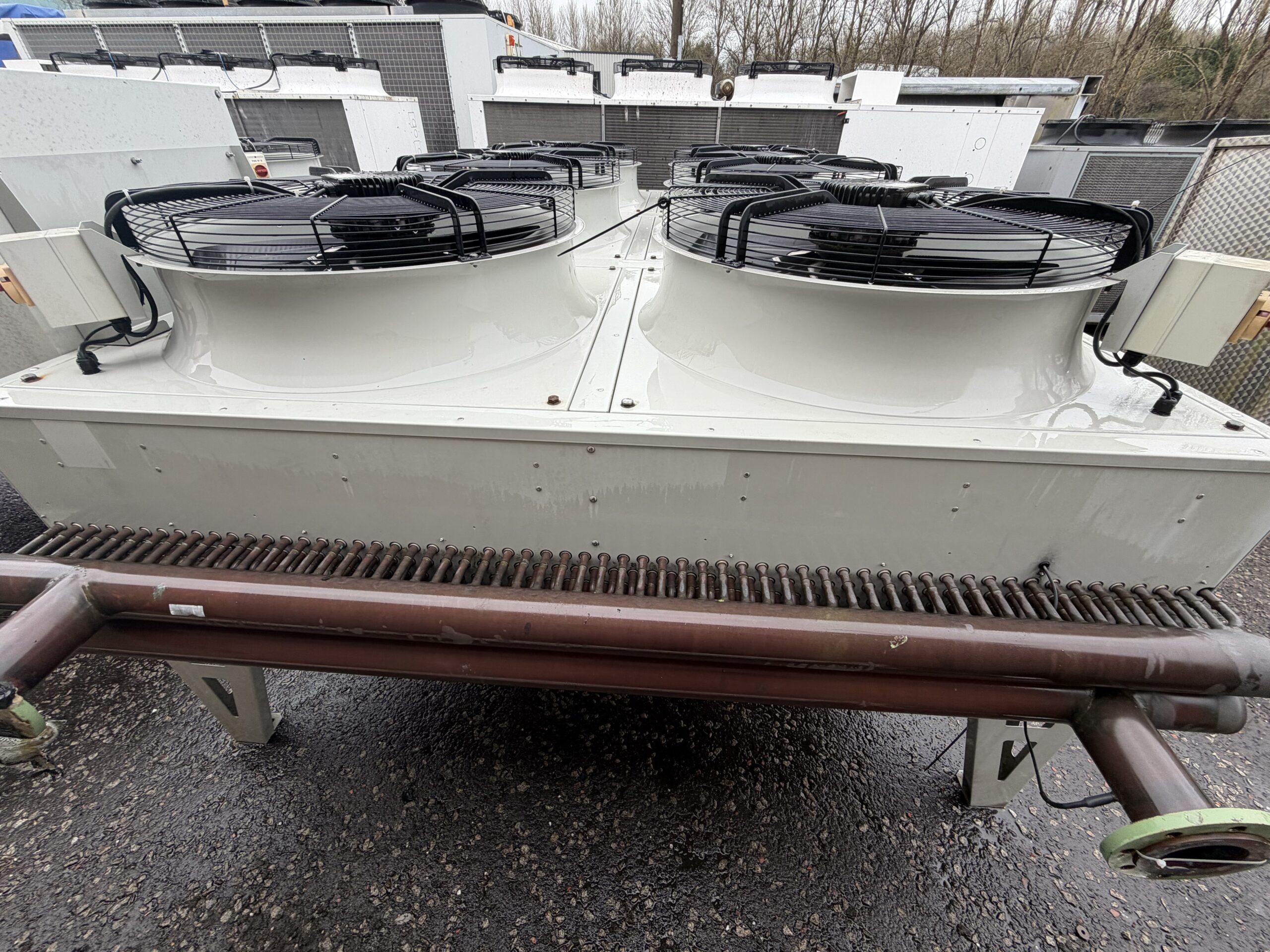

The coil is a CK 60-5-12-3600 unit with copper tubes and poly-coated aluminium fins. It runs 75 circuits at 4 tubes per circuit. The poly-coated fins resist corrosion and extend service life in outdoor conditions. Inlet and outlet connections are 108mm bi-metal, so the cooler integrates cleanly into glycol-based systems.

The casework is grey painted galvanised steel, engineered for outdoor industrial sites.

Fans and electrical supply

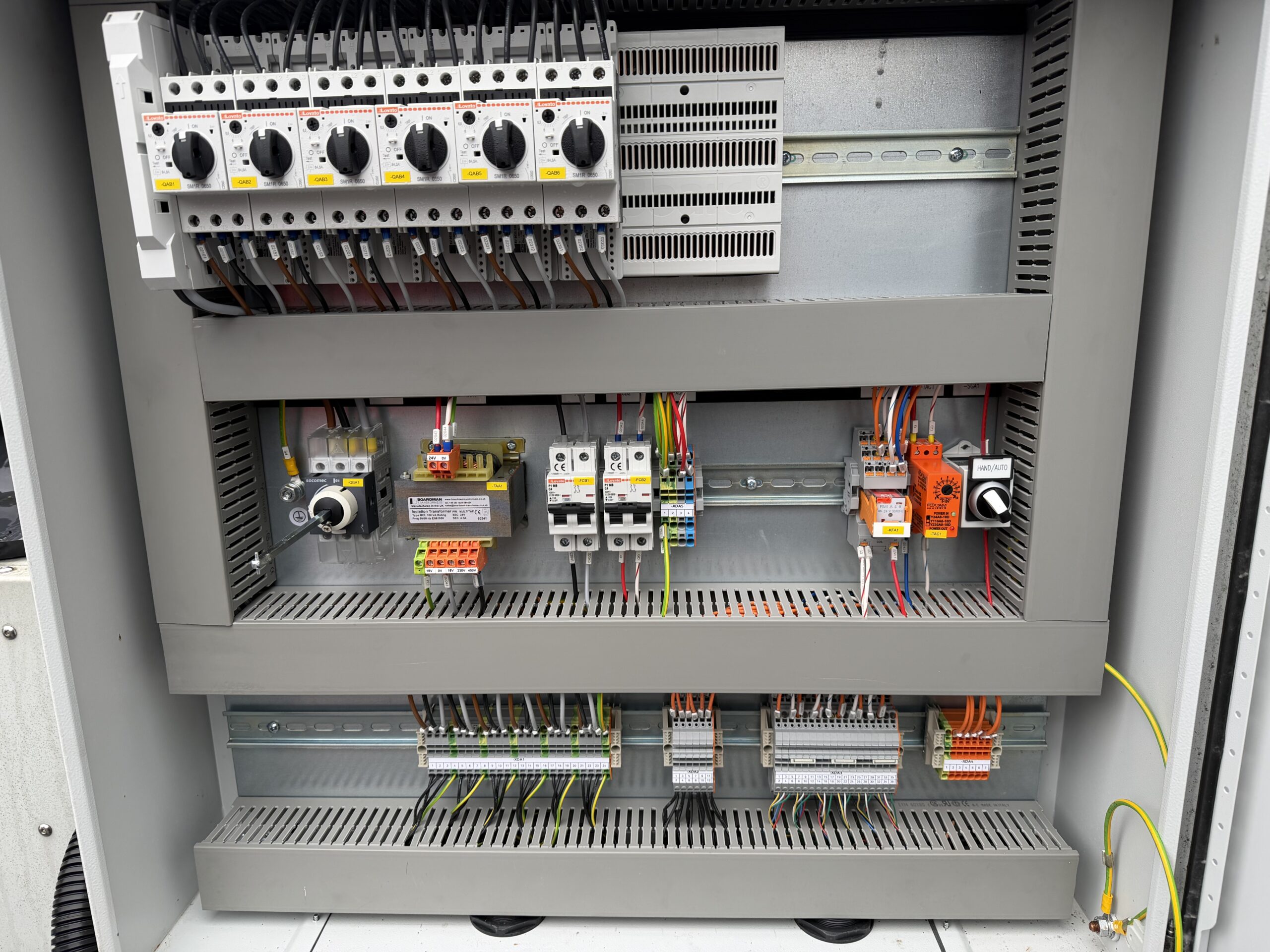

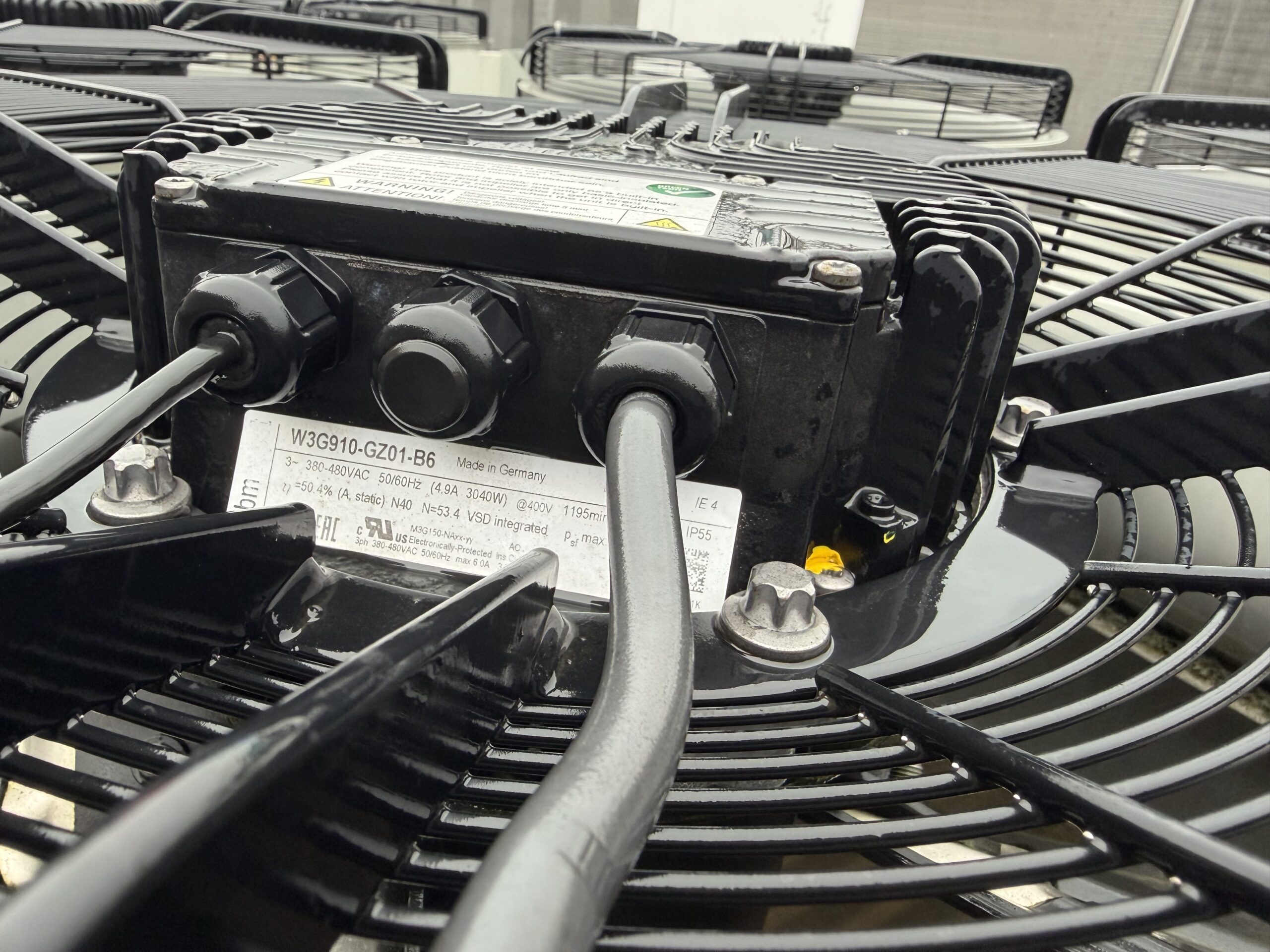

Air movement comes from high-efficiency EC axial fans rated at 3.20kW and 1200 rpm. The fans give variable-speed control, low noise and lower energy use. Electrical data:

• Supply: 415V / 3-phase / 50Hz
• Full load current: 4.9A
• Starting current: 5.64A

Key specifications

• Cooling capacity: 394.8kW
• Fluid: 30% ethylene glycol
• Fluid flow rate: 25.1 L/s
• Pressure drop: 77.48 kPa
• Airflow rate: 36.06 m³/s
• Internal fluid volume: 250 dm³
• Dry weight: 1210kg
• Connections: 108mm bi-metal inlet and outlet

Sustainable cooling, ready for export

Buying this dry air cooler refurbished costs far less than new and cuts the carbon tied to manufacturing replacement plant. We refurbish and test units to order and ship worldwide.

Call us to check condition, refurbishment status and export options for this unit.
