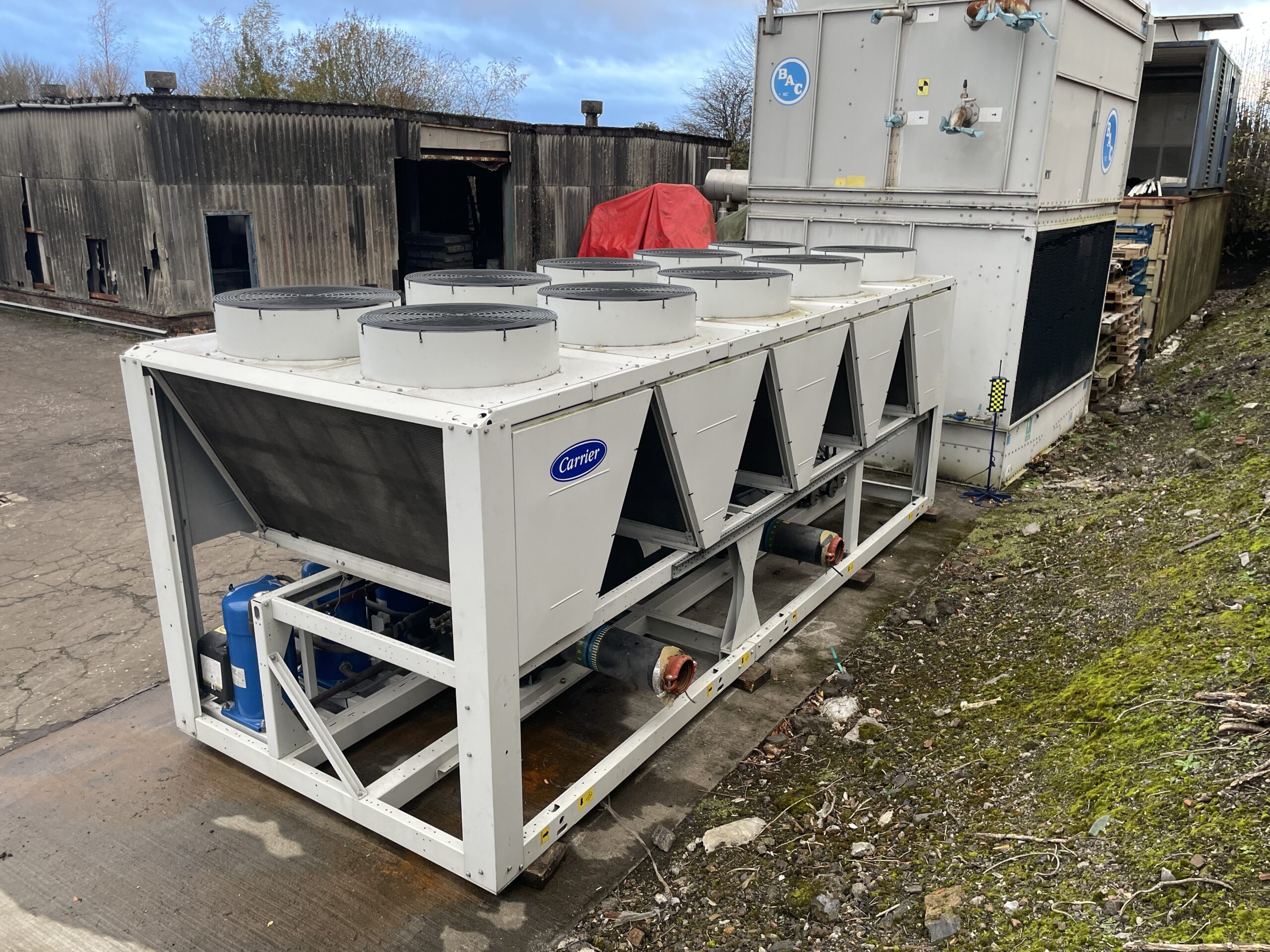

Used Carrier 30RB0672 Air-Cooled Chiller, 648 kW, 2016

This used Carrier 30RB0672 is a 648 kW air-cooled chiller built in 2016. Stock number CC22/221. It is in good running condition and available for immediate delivery.

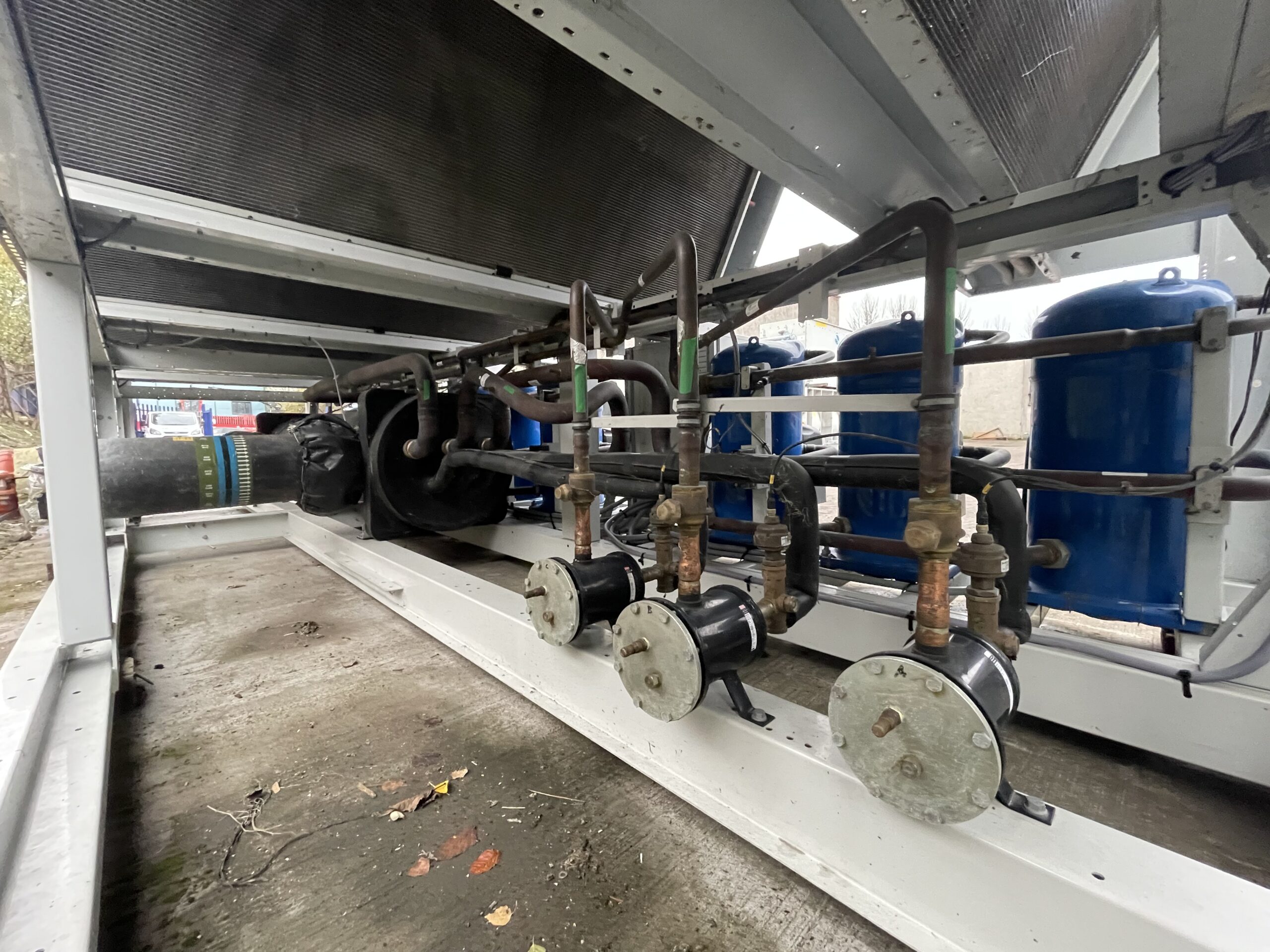

Ten Carrier scroll compressors run across three independent refrigerant circuits on R410A. The condenser uses microchannel coils. The evaporator is a shell and tube type.

At 648 kW, the chiller covers around 184 tons of refrigeration.

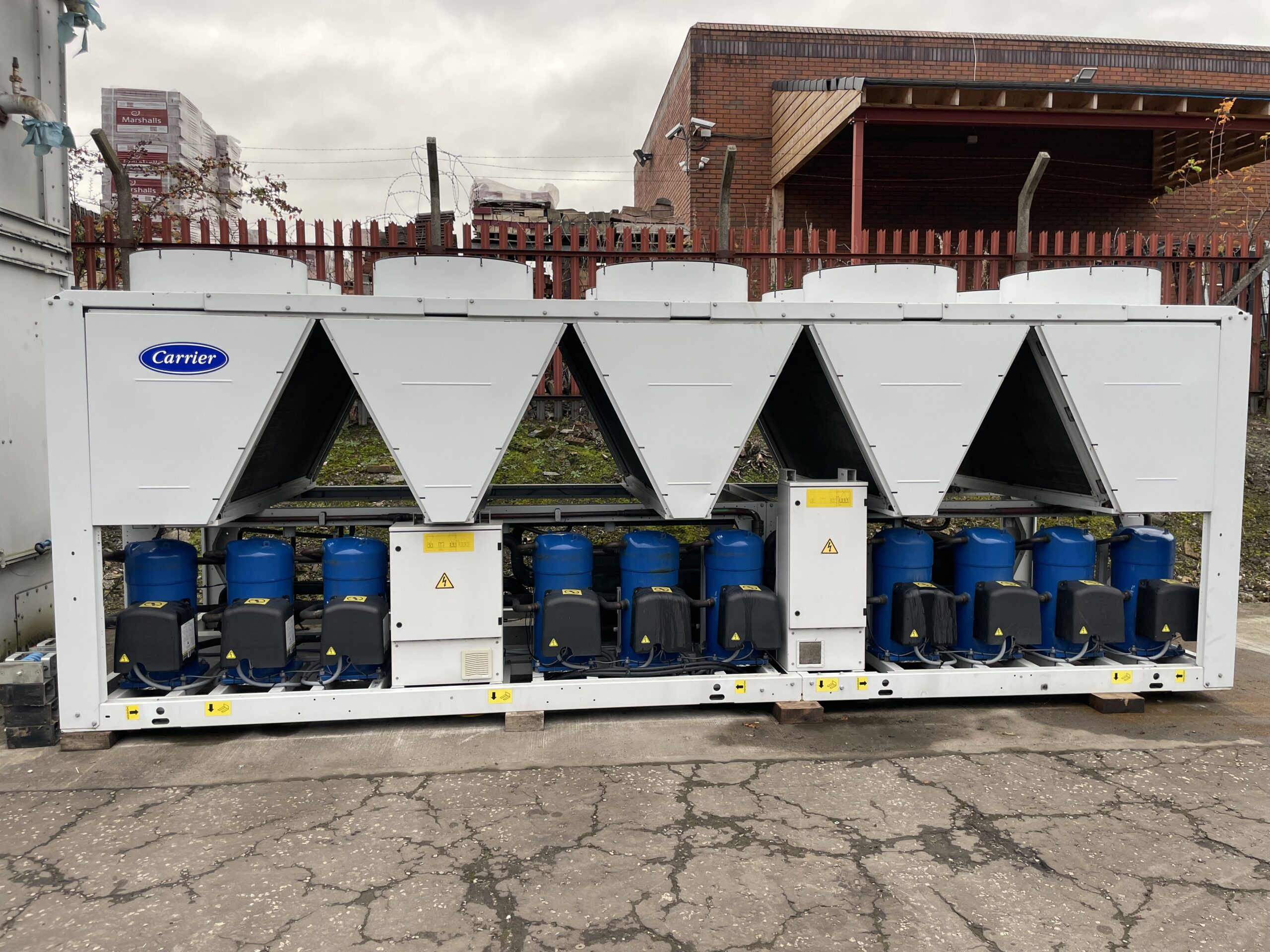

Ten compressors, three circuits

Three circuits give more resilience than the usual two. Losing one circuit on this machine still leaves you around two thirds of the duty.

Ten compressors also give fine capacity control. The unit steps down in small increments rather than dropping in large blocks, which holds a steadier leaving water temperature at part load and cuts compressor cycling.

Heat exchange

Microchannel condenser coils hold less refrigerant than a traditional tube and fin block, which keeps your F-Gas charge and your leak exposure lower.

A shell and tube evaporator handles a wider temperature range than a plate type and tolerates less clean water.

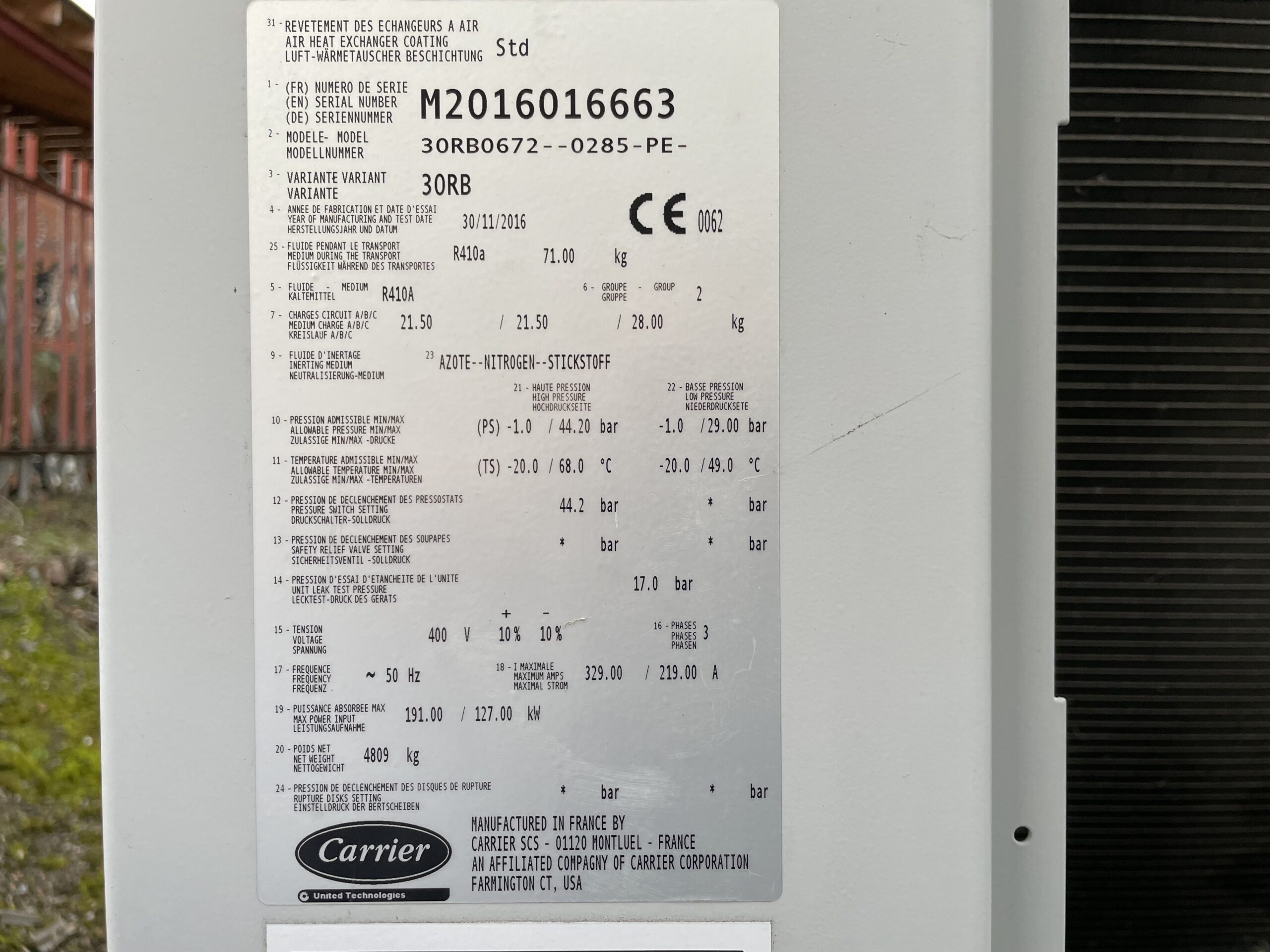

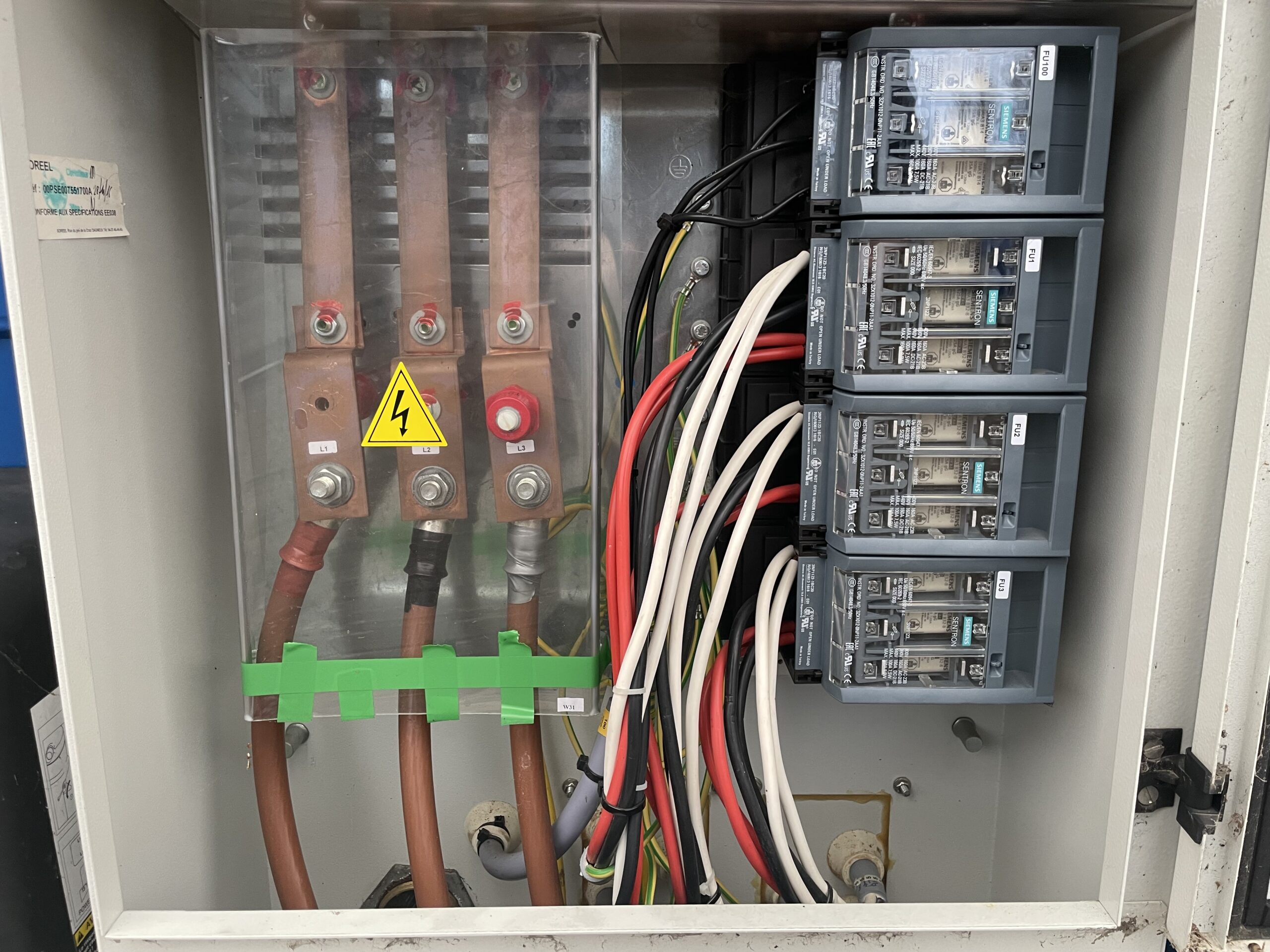

Electrical and dimensions

• Supply: 400V, three phase
• Full load current: 219 A
• Maximum absorbed power: 191 kW
• Dimensions: 5992 x 2253 x 2297 mm
• Operating weight: 4809 kg

Measure your access route. At almost six metres this is a large machine.

Applications

Data centres, large commercial buildings, hospitals and manufacturing plant.

Availability

Leak tested, electrically tested, pressure tested and visually inspected before dispatch. UK delivery and worldwide export.

Call +44 (0)141 724 0274 or email sales@circularcooling.com.
