CLIMAVENETA FX-G05/K/S 3152

الوصف

Used Climaveneta FX-G05/K/S 3152 Air-Cooled Chiller for Sale, 698kW, R513A

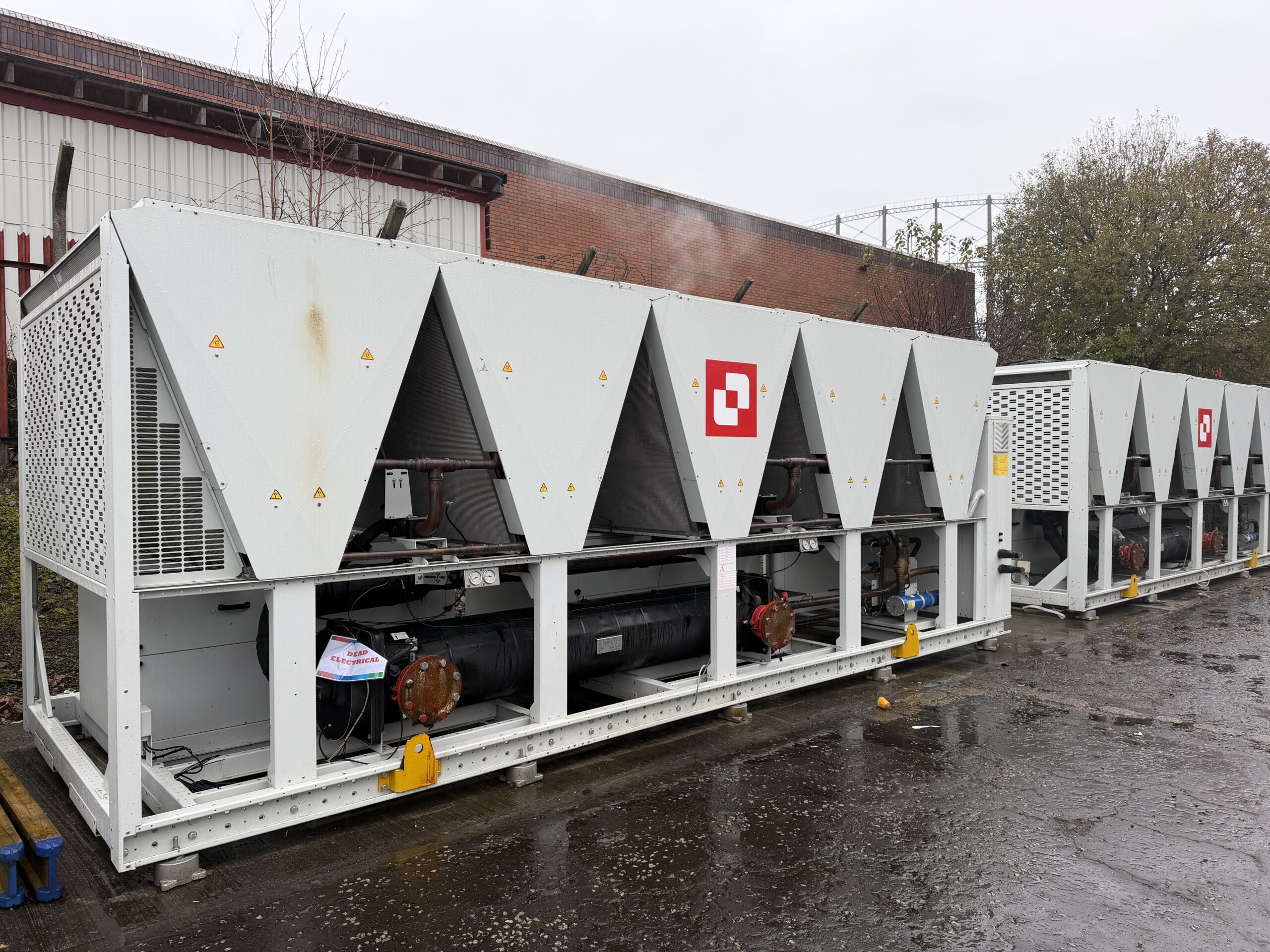

This used Climaveneta FX-G05/K/S 3152 is a 698kW air-cooled water chiller built for outdoor installation. It runs 2 semi-hermetic variable-speed screw compressors on R513A low-GWP refrigerant. The G05 series is engineered for demanding commercial and industrial cooling that needs high efficiency, wide operating limits and reliable performance.

This unit is in stock and available for immediate delivery.

Operating range and applications

The FX-G05/K/S 3152 has a wide operating range and runs down to glycol flow temperatures of -10°C. That makes it suitable for two distinct jobs:

• Comfort cooling for building air conditioning
• Low-temperature process cooling using glycol as the secondary fluid

مبرد

The chiller is optimised for R513A (A1, non-flammable), a lower-GWP alternative to R134a. You get reduced refrigerant-related emissions without a flammable charge.

Circuits and pump

The unit has 2 independent refrigeration circuits, so it holds partial cooling if one circuit needs attention. It also includes a skid-mounted circulating pump, which cuts installation work on site.

Key specifications

• Make: Climaveneta
• Model: FX-G05/K/S 3152
• Type: air-cooled water chiller, outdoor installation
• Nominal cooling capacity: 698kW
• Refrigerant: R513A (A1, non-flammable)

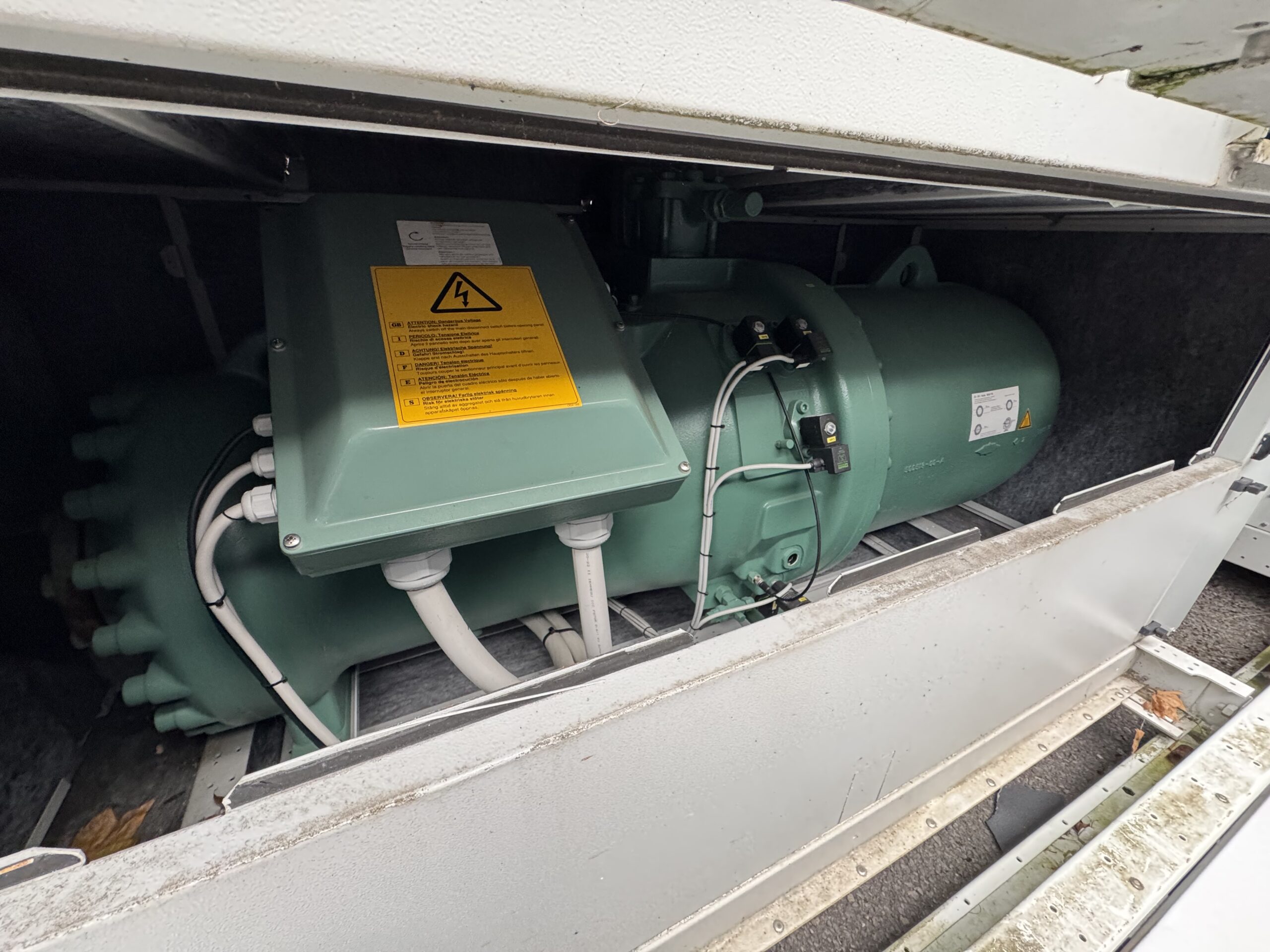

• Compressors: 2 semi-hermetic variable-speed screw
• Circuits: 2 independent refrigeration circuits
• Pump: skid-mounted circulating pump included
• Minimum glycol flow temperature: -10°C
• Availability: in stock, immediate delivery

Sustainable cooling at a lower cost, ready for export

A used Climaveneta FX-G05/K/S 3152 costs far less than a new unit and avoids the carbon tied to building replacement plant. It runs low-GWP R513A and ships ready to install with the pump already mounted. We test units and ship worldwide.

Call us to confirm condition, testing and export options for this Climaveneta chiller.
