Howden XRV 204 110

New Unused Howden XRV 204 110 Screw Compressor Block for Sale

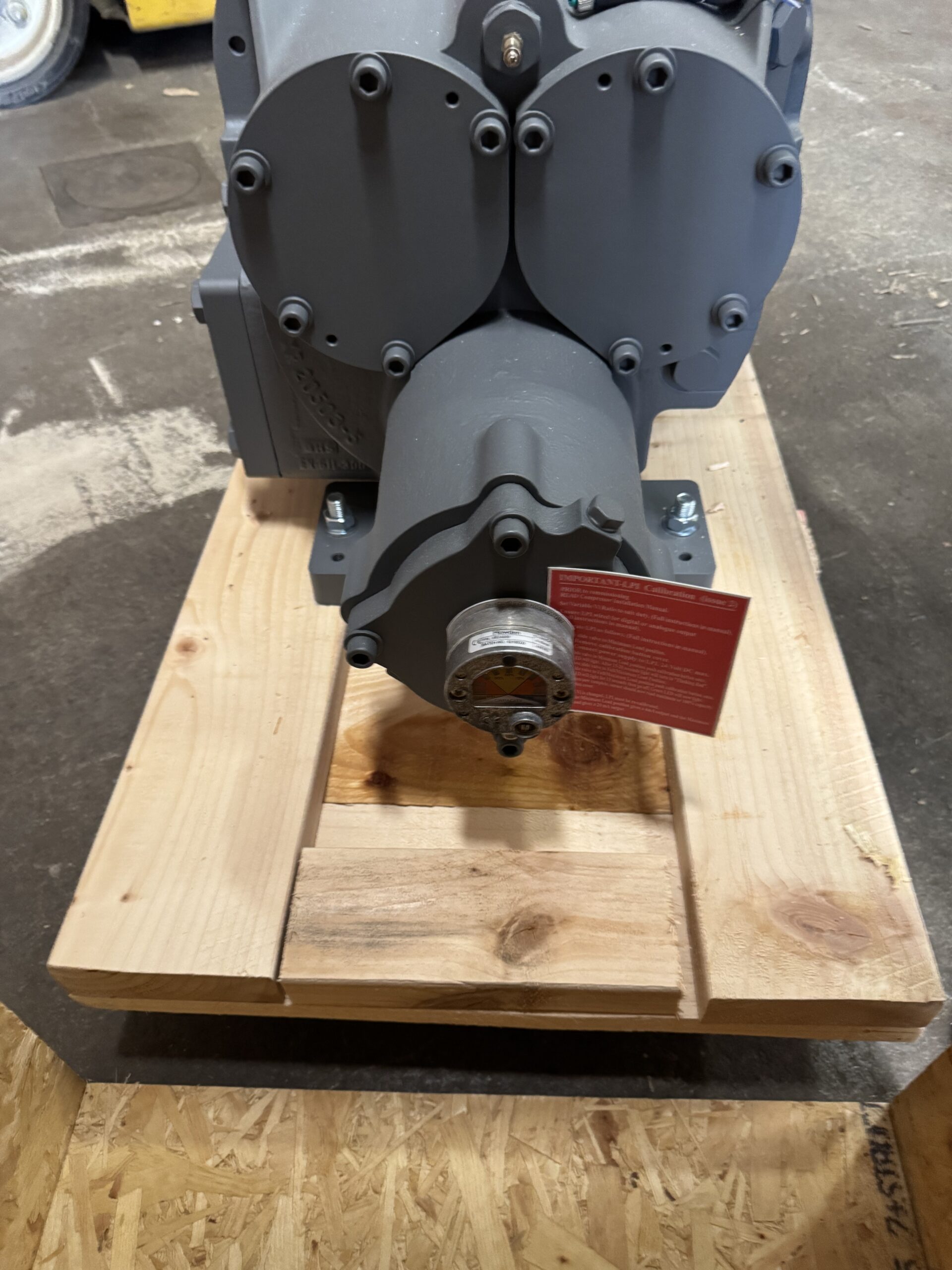

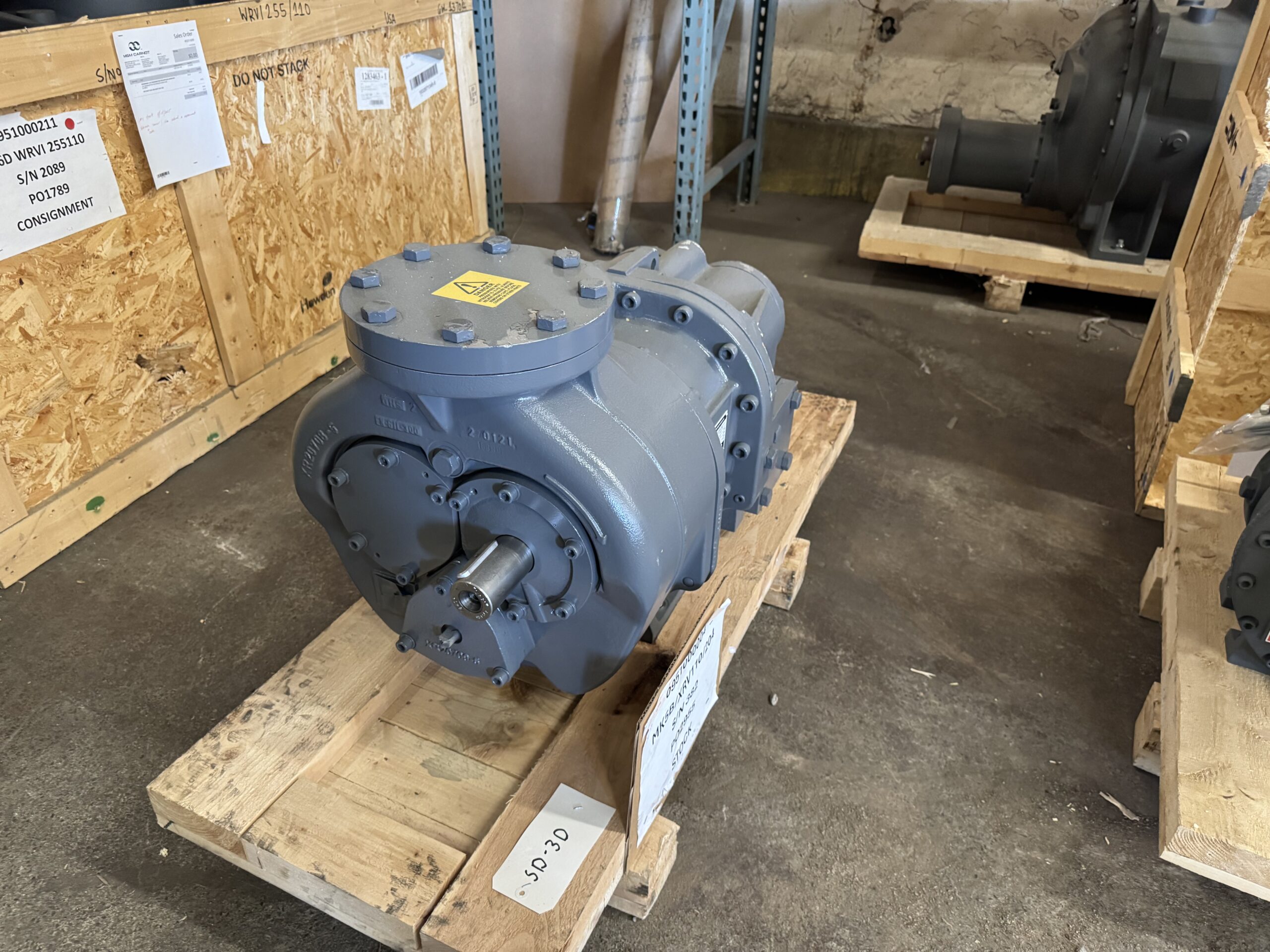

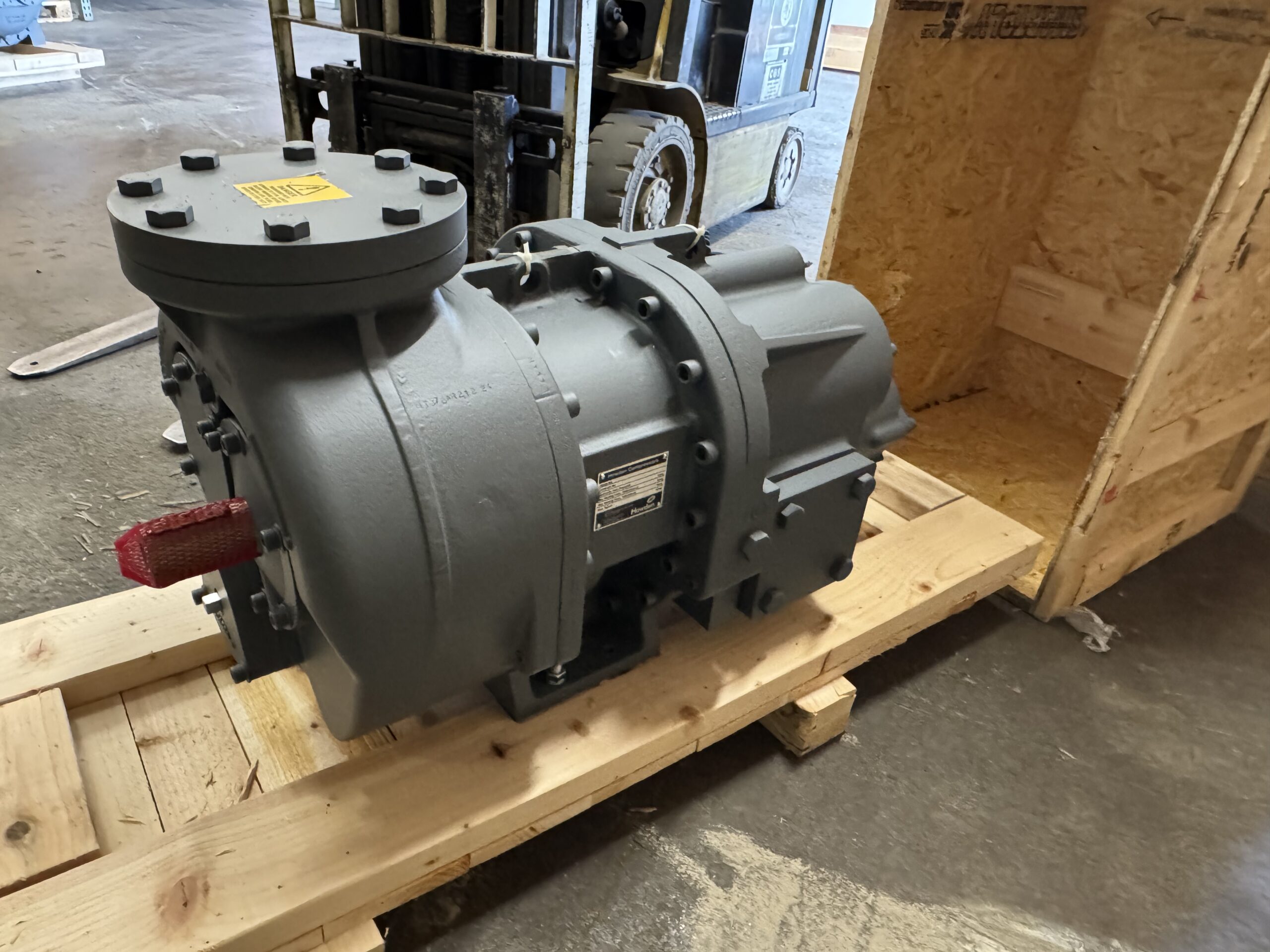

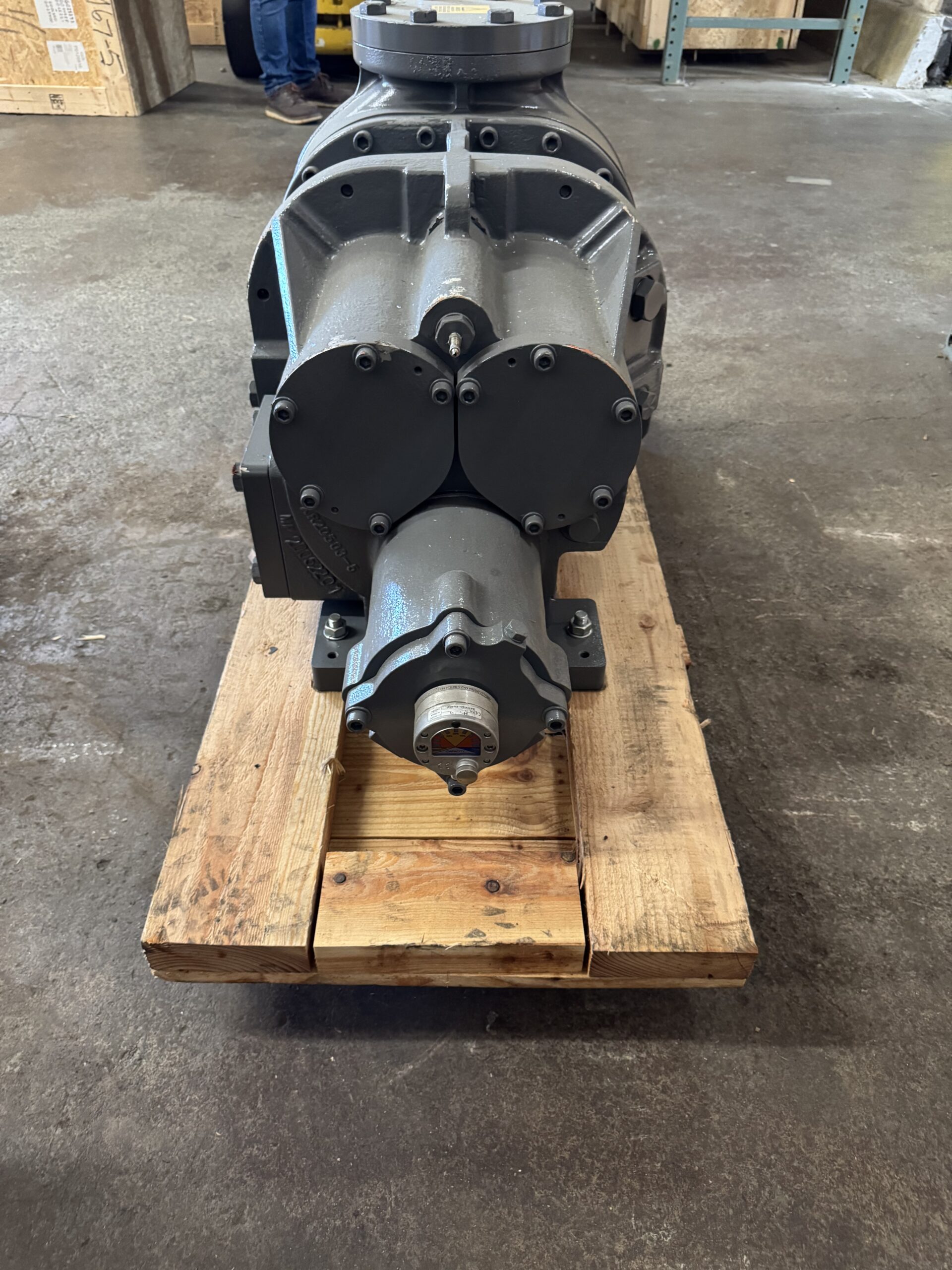

This Howden XRV 204 110 is a new, unused screw compressor block, supplied in its original crate from the Howden factory. It is part of the XRV 204 range, the lowest-capacity XRV block in stock, with adjustable Vi control.

Capacity

• High-stage capacity: 500kW at -10/+35, 3000 rpm
• Low-stage capacity: 159kW at -40/+35, economised, 3000 rpm

Design

The XRV 204 110 is an oil-injected rotary screw compressor with parallel male and female rotors for smooth compression. It uses adjustable or automatic Vi control, with ratios between 2.6:1 and 5.0:1, so the block can be tuned for efficiency across a wide range of operating conditions.

The block is built with precision-machined rotors and roller bearings. That reduces maintenance and supports a long service life.

Applications

The compressor suits refrigeration, liquid chilling and gas compression systems.

Key specifications

• Make: Howden
• Model: XRV 204 110
• Type: oil-injected rotary screw compressor block (bare)
• High-stage capacity: 500kW (-10/+35, 3000 rpm)
• Low-stage capacity: 159kW (-40/+35, economised, 3000 rpm)
• Rotors: parallel male and female, precision-machined
• Bearings: roller
• Vi: adjustable or automatic, ratios 2.6:1 to 5.0:1
• Condition: new, unused, in original Howden crate
