Howden XRV 163 193/MVI

Description

New Unused Howden XRV 163 Screw Compressor Block for Sale

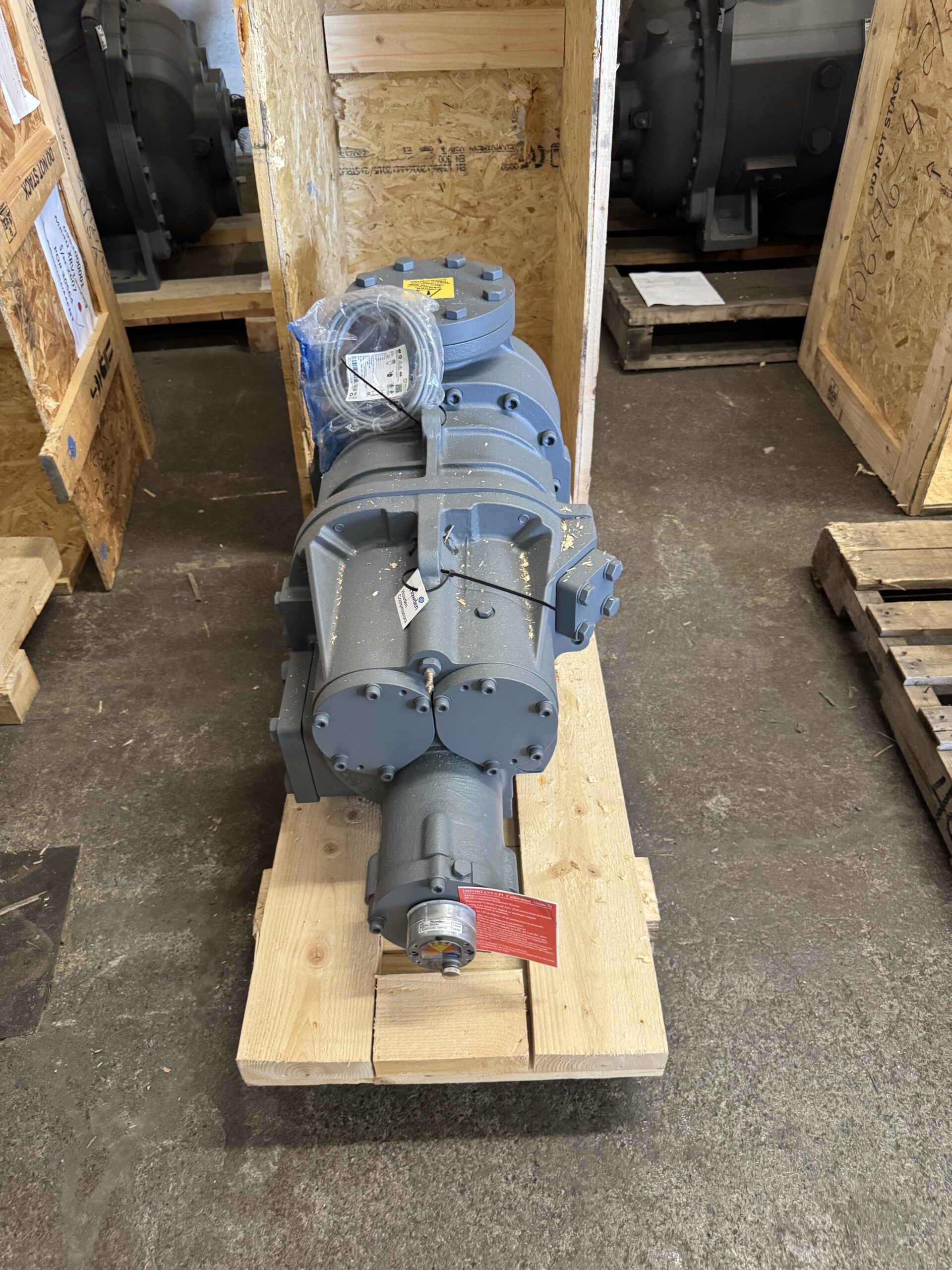

This Howden XRV 163 is a new, unused screw compressor block, supplied in its original crate from the Howden factory. It is the XRV 163 frame, a smaller block than the XRV 204 range, with adjustable Vi control.

Capacity

• High-stage capacity: 416kW at -10/+35
• Low-stage capacity: 126kW at -40/+35, economised

Design

The XRV 163 is an oil-injected rotary screw compressor with parallel male and female rotors for smooth compression. It uses adjustable or automatic Vi control, with ratios between 2.6:1 and 5.0:1, so the block can be tuned for efficiency across a wide range of operating conditions.

The block is built with precision-machined rotors and roller bearings. That reduces maintenance and supports a long service life.

Applications

The compressor suits refrigeration, liquid chilling and gas compression systems.

Key specifications

• Make: Howden
• Model: XRV 163
• Type: oil-injected rotary screw compressor block (bare)
• High-stage capacity: 416kW (-10/+35)
• Low-stage capacity: 126kW (-40/+35, economised)
• Rotors: parallel male and female, precision-machined
• Bearings: roller
• Vi: adjustable or automatic, ratios 2.6:1 to 5.0:1
• Condition: new, unused, in original Howden crate
